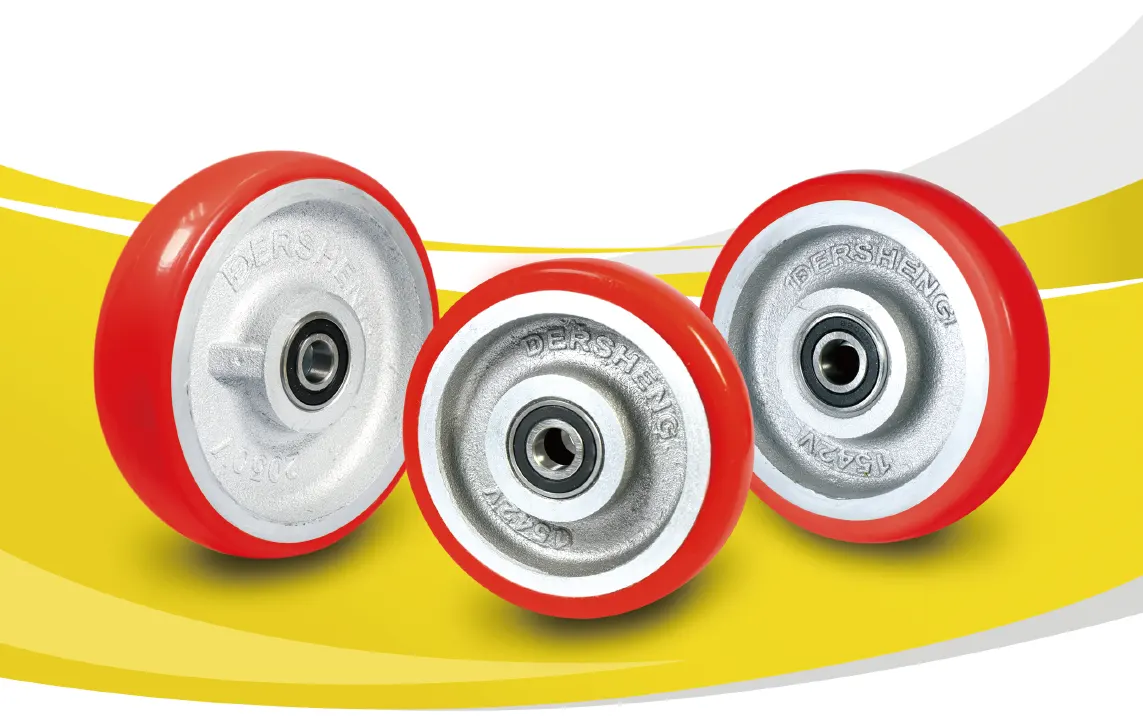

VPU系列

超高负载重型轮
PU外包+ 铁芯 / 铸铁芯

轮面硬度     ○ ○ ○ ● ○     92° Shore A
温度范围     ○ ● ● ○ ○     -30℃ 至 +70℃
滚动顺畅     ● ● ● ● ○     优秀
静音表现     ● ● ● ○ ○     良好
保护地板     ● ● ● ○ ○     良好

轮面

由高品质聚氨酯製成。得貹硬度92°的PU轮不仅能提供良好的地板保护作用，而且低噪音。得貹PU轮有着优秀的抗水解特性，是用热带地区及潮溼的工作环境。

轮框

内框：铁芯/铸铁芯

特色

•抗化学、溶剂及侵蚀
•耐磨
•抗微生物
•适用环境温度：-30°C~+70°C
•在正常使用情况下，无需维修

轮子详细资讯

品号 轮径
(D)【mm】		 轮宽
(T2)【mm】		 载重
【kg(lbs)】		 轴承内径
Ø(d)【mm】		 中宽
(T1)【mm】		 轮面 轴承
12035106186171 150 42 700kg (1543lbs) 17 42 圆弧 精密滚珠轴承
12035106186271 150 42 700kg (1543lbs) 20 42
12035106306171 150 75 1100kg (2425lbs) 20 75
12035106306271 150 75 1100kg (2425lbs) 25 75
12035107206171 180 50 850kg (1874lbs) 20 50
12035107206271 180 50 850kg (1874lbs) 25 50
12035108206171 200 50 1000kg (2205lbs) 20 50
12035108206271 200 50 1000kg (2205lbs) 25 50
12035108206471 200 50 1000kg (2205lbs) 30 50
12035108206571 200 50 1000kg (2205lbs) 35 50
12035108206671 200 50 1000kg (2205lbs) 40 50
12035110256171 250 62 1500kg (3307lbs) 20 61
12035110256271 250 62 1500kg (3307lbs) 25 61
12035110256371 250 62 1500kg (3307lbs) 30 61
12035110256471 250 62 1500kg (3307lbs) 35 61
12035112356171 300 90 1800kg (3968lbs) 30 90
12035112356271 300 90 1800kg (3968lbs) 35 90
12035114356201 350 90 2200kg (4850lbs) 35 90
12035114356101 350 90 2200kg (4850lbs) 40 90
12035114356301 350 90 2200kg (4850lbs) 45 90
12035114356401 350 90 2200kg (4850lbs) 50 90
12035110306171 250 80 2000kg (4409lbs) 25 90 平面
12035110306271 250 80 2000kg (4409lbs) 30 90
12035110306371 250 80 2000kg (4409lbs) 35 90
12035112356371 300 90 2400kg (5291lbs) 30 90
12035112356471 300 90 2400kg (5291lbs) 35 90
12035116406171 400 100 2800kg (6190lbs) 35 100
12035116406271 400 100 2800kg (6190lbs) 40 100
12035116406371 400 100 2800kg (6190lbs) 45 100
12035116406471 400 100 2800kg (6190lbs) 50 100
