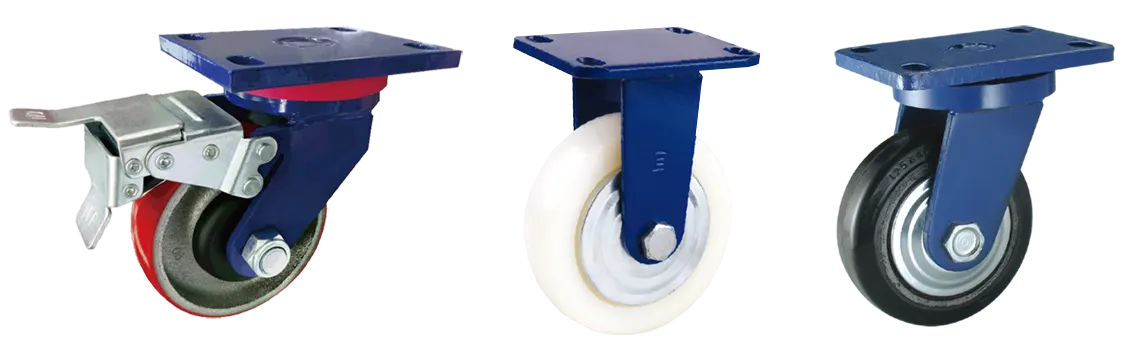

1102系列 — B型系列
超高负载且转动灵活，适用于汽车厂、汽车装配厂、玻璃厂、纺织厂等负载重的车间，另可附防缠丝及防尘盖，属得貹专利产品，可以有效防止脚轮因灰尘或缠丝而无法转动，提高脚轮使用寿命。
特色区

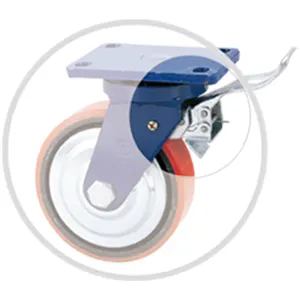

中剎

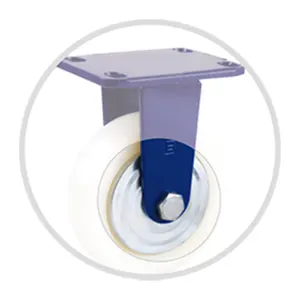

轮子可附防缠丝盖
(供选择)
轮子可附金属防尘盖
(供选择)

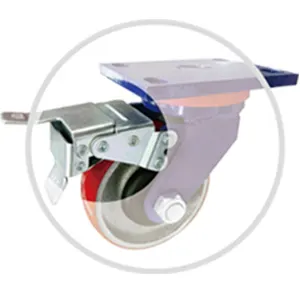

AK剎
另轮子可附塑胶防尘盖
(供选择)
PU轮面可以变化硬度
特色区
.webp)
中剎
.webp)
轮子可附防缠丝盖
(供选择)
.webp)
轮子可附金属防尘盖
(供选择)
.webp)

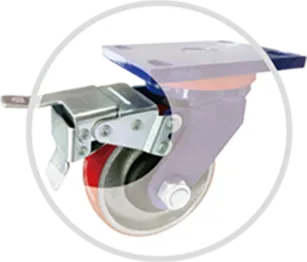

AK剎
轮子可附塑胶防尘盖
(供选择)
.webp)

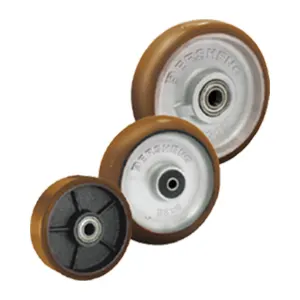

PU轮面可以变化硬度
轮子选择
-
铁芯聚氨酯
-
三星轮
-
铁芯NBR橡胶轮
-
尼龙轮
-
WMRC轮
-
QPU轮
-
APU轮
-
CPD轮
-
铣轮
-
环保NBR橡胶轮
-
EQPU轮
-
铁芯聚氨酯
(2050A/2050B) -
ZQPU轮(双轮)
-
VPU轮
-
EPU轮
-
VQPU轮
-
铁芯VXPU
-
铝芯QQ橡胶轮
-
环保牵引NBR
-
铝芯AQPU
底板规格
| 编号 Suffix |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 4" | 90x120 mm (3-17/32" x 4-23/32") |
60 x 90 mm (2-3/8" x 3-17/32") |
11 mm (7-16") |
| 5,6,8" | 110 x 140 mm (4-11/32" x 5-1/2") |
75 x 110 mm(常规标准底板) (2-15/16" x 4-11/32") |
12 mm (1/2") |
| 110 x 140 mm (4-11/32" x 5-1/2") |
80 x 105 mm(欧洲底板) (3-5/32" x 4-1/8") |
12 mm (1/2") |
|
| 130 x 130 mm (5-1/8" x 5-1/8") |
105 x 105 mm (4-1/8" x 4-1/8") |
9 mm (3/8") |
|
| 130 x 130 mm (5-1/8" x 5-1/8") |
105 x 105 mm (4-1/8" x 4-1/8") |
12 mm (1/2") |
|
| 130 x 165 mm (5-1/8" x 6-1/2") |
100 x 130 mm (3-15/16" x 5-1/8") |
12 mm (1/2") |
|
| 114 x 159 mm (4-1/2" x 6-1/4") |
73.8 x 129.4 mm (2-29/32" x 5-3/32") |
12 mm (1/2") |
|
| 10" | 130 x 167 mm (5-1/8" x 6-9/16") |
85 x 140 mm(大陆常规底板) (3-11/32" x 5-1/2" |
12 mm (1/2") |
| 110 x 175 mm (4-11/32" x 6-7/8") |
65 x 140 mm(台湾常规底板) (2-9/16" x 5-1/2") |
12 mm (1/2") |
|
| 12" | 130 x 167 mm (5-1/8" x 6-9/16") |
85 x 140 mm (3-11/32" x 5-1/2") |
12 mm (1/2") |
底板规格
| 编号 Suffix |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 4" | 90x120 mm (3-17/32" x 4-23/32") |
60 x 90 mm (2-3/8" x 3-17/32") |
11 mm (7-16") |
| 编号 Suffix |
底板尺寸 Top Plate Size |
底板孔距 Bolt Hole Spacing |
安装尼帽尺寸 Attaching Bolt Size |
| 4" | 90x120 mm (3-17/32" x 4-23/32") |
60 x 90 mm (2-3/8" x 3-17/32") |
11 mm (7-16") |
| 5,6,8" | 110 x 140 mm (4-11/32" x 5-1/2") |
75 x 110 mm(常规标准底板) (2-15/16" x 4-11/32") |
12 mm (1/2") |
| 110 x 140 mm (4-11/32" x 5-1/2") |
80 x 105 mm(欧洲底板) (3-5/32" x 4-1/8") |
12 mm (1/2") |
|
| 130 x 130 mm (5-1/8" x 5-1/8") |
105 x 105 mm (4-1/8" x 4-1/8") |
9 mm (3/8") |
|
| 130 x 130 mm (5-1/8" x 5-1/8") |
105 x 105 mm (4-1/8" x 4-1/8") |
12 mm (1/2") |
|
| 130 x 165 mm (5-1/8" x 6-1/2") |
100 x 130 mm (3-15/16" x 5-1/8") |
12 mm (1/2") |
|
| 114 x 159 mm (4-1/2" x 6-1/4") |
73.8 x 129.4 mm (2-29/32" x 5-3/32") |
12 mm (1/2") |
|
| 10" | 130 x 167 mm (5-1/8" x 6-9/16") |
85 x 140 mm(大陆常规底板) (3-11/32" x 5-1/2" |
12 mm (1/2") |
| 110 x 175 mm (4-11/32" x 6-7/8") |
65 x 140 mm(台湾常规底板) (2-9/16" x 5-1/2") |
12 mm (1/2") |
|
| 12" | 130 x 167 mm (5-1/8" x 6-9/16") |
85 x 140 mm (3-11/32" x 5-1/2") |
12 mm (1/2") |
轮子详细资讯
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 迴旋半径 | ||
| 固定 | 活动 | 剎车 | ||||||
| 93mm x 28mm (3-21/32"x1-3/32") |
400kgs (880 lbs) |
铣轮 Cast Iron |
1102-04-14-1 | 1102-04-14-2 | 1102-04-14-4 | 滚珠轴承 Ball Bearing |
143.5mm (5-21/32") |
活动 87mm Swivel 87mm |
| 100mm x 32mm (4"x1-1/4") |
250kgs (550 lbs) |
尼龙轮 Nylon |
1102-04-07-1 | 1102-04-07-2 | 1102-04-07-4 | 滚珠轴承 Ball Bearing |
147mm (5-25/32") |
活动 92mm Swivel 92mm AK剎 148mm Swivel W/AK Lock Brake 148mm |
| 200kgs (440 lbs) |
CPD轮 CPD |
1102-04-49-1 | 1102-04-49-2 | 1102-04-49-4 | ||||
| 100mm x 34mm (4"x1-3/8") |
335kgs (735 lbs) |
QPU轮(圆弧) QPU (Round) |
1102-04-80-1 | 1102-04-80-2 | 1102-04-80-4 | |||
| 385kgs (845 lbs) |
QPU轮(平面) QPU (Flat) |
1102-04-80-1 | 1102-04-80-2 | 1102-04-80-4 | ||||
| 100mm x 36mm (4"x1-7/16") |
250kgs (550 lbs) |
铁芯聚氨酯 PU on Cast |
1102-04-33-1 | 1102-04-33-2 | 1102-04-33-4 | |||
| 200kgs (440 lbs) |
三星轮 Rubber on Cast |
1102-04-03-1 | 1102-04-03-2 | 1102-04-03-4 | ||||
| 250kgs (550 lbs) |
APU轮(圆弧) PU on AL Core (Round) |
1102-04-108-1 | 1102-04-108-2 | 1102-04-108-4 | ||||
| 300kgs (660 lbs) |
铝芯AQPU轮(圆弧) QPU on AL Core (Round) |
1102-04-87-1 | 1102-04-87-2 | 1102-04-87-4 | ||||
| 100mm x 38mm (4"x1-1/2") |
200kgs (440 lbs) |
铁芯NBR橡胶轮 NBR Rubber on Cast |
1102-04-04-1 | 1102-04-04-2 | 1102-04-04-4 | |||
| 200kgs (440 lbs) |
环保NBR橡胶轮 Non-marking Rubber on Cast |
1102-04-11-1 | 1102-04-11-2 | 1102-04-11-4 | ||||
| 200kgs (440 lbs) |
环保牵引NBR轮 Non-marking NBR Rubber on Cast |
1102-04-90-1 | 1102-04-90-2 | 1102-04-90-4 | ||||
| 100mm x 40mm (4"x1-9/16") |
275kgs (600 lbs) |
APU轮(圆弧) PU on AL Core (Round) |
1102-04-108-1 | 1102-04-108-2 | 1102-04-108-4 | |||
| 200kgs (440 lbs) |
铝芯QQ橡胶轮 Recilent rubber on AL Core |
1102-04-89-1 | 1102-04-89-2 | 1102-04-89-4 | ||||
| 325kgs (715 lbs) |
铝芯AQPU轮(圆弧) QPU on AL Core (Round) |
1102-04-87-1 | 1102-04-87-2 | 1102-04-87-4 | ||||
| 100mm x 46.5mm (4"x1-13/16") |
335kgs (735 lbs) |
ZQPU轮(双轮) ZQPU (Dual Wheels) |
1102-04-101-1 | 1102-04-101-2 | 1102-04-101-4 | |||
| 122mm x 36.5mm (4-13/16"x1-7/16") |
600kgs (1320 lbs) |
铣轮 Cast Iron |
1102-05-14-1 | 1102-05-14-2 | 1102-05-14-4 | 滚珠轴承 Ball Bearing |
168.5mm (6-5/8") |
活动 103mm Swivel 103mm |
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 迴旋半径 | ||
| 固定 | 活动 | 剎车 | ||||||
| 125mm x 40mm (5"x1-9/16") |
340kgs (750 lbs) |
铁芯聚氨酯 PU on Cast |
1102-05-33-1 | 1102-05-33-2 | 1102-05-33-4 | 滚珠轴承 Ball Bearing |
170mm (6-11/16") |
活动 107 mm Swivel 107mm AK剎 158 mm Swivel W/AK Lock Brake 158mm |
| 220kgs (485 lbs) |
三星轮 Rubber on Cast |
1102-05-03-1 | 1102-05-03-2 | 1102-05-03-4 | ||||
| 300kgs (660 lbs) |
尼龙轮 Nylon |
1102-05-07-1 | 1102-05-07-2 | 1102-05-07-4 | ||||
| 300kgs (660 lbs) |
APU轮(圆弧) PU on AL Core (Round) |
1102-05-108-1 | 1102-05-108-2 | 1102-05-108-4 | ||||
| 350kgs (770 lbs) |
铝芯AQPU轮(圆弧) QPU on AL Core (Round) |
1102-05-87-1 | 1102-05-87-2 | 1102-05-87-4 | ||||
| 250kgs (550 lbs) |
铁芯NBR橡胶轮 NBR Rubber on Cast |
1102-05-04-1 | 1102-05-04-2 | 1102-05-04-4 | ||||
| 250kgs (550 lbs) |
CPD轮 CPD |
1102-05-49-1 | 1102-05-49-2 | 1102-05-49-4 | ||||
| 250kgs (550 lbs) |
环保NBR橡胶轮 Non-marking Rubber on Cast |
1102-05-11-1 | 1102-05-11-2 | 1102-05-11-4 | ||||
| 250kgs (550 lbs) |
环保牵引NBR轮 Non-marking NBR Rubber on Cast |
1102-05-90-1 | 1102-05-90-2 | 1102-05-90-4 | ||||
| 300kgs (660 lbs) |
铝芯QQ橡胶轮 Recilent rubber on AL Core |
1102-05-89-1 | 1102-05-89-2 | 1102-05-89-4 | ||||
| 450kgs (990 lbs) |
QPU轮(圆弧) QPU (Round) |
1102-05-80-1 | 1102-05-80-2 | 1102-05-80-4 | ||||
| 500kgs (1100 lbs) |
QPU轮(平面) QPU (Flat) |
1102-05-80-1 | 1102-05-80-2 | 1102-05-80-4 | ||||
| 340kgs (750 lbs) |
EPU轮(圆弧) EPU (Round Shape) |
1102-05-78-1 | 1102-05-78-2 | 1102-05-78-4 | ||||
| 390kgs (860 lbs) |
EPU轮(平面) EPU (Flat Shape) |
1102-05-78-1 | 1102-05-78-2 | 1102-05-78-4 | ||||
| 450kgs (990 lbs) |
EQPU轮(圆弧) EQPU (Round Shape) |
1102-05-81-1 | 1102-05-81-2 | 1102-05-81-4 | ||||
| 500kgs (1100 lbs) |
EQPU轮(平面) EQPU (Flat Shape) |
1102-05-81-1 | 1102-05-81-2 | 1102-05-81-4 | ||||
| 125mm x 50mm (5" x 2") |
400kgs (880 lbs) |
APU轮(平面) PU on AL Core (Flat) |
1102-05-108-1 | 1102-05-108-2 | 1102-05-108-4 | 滚珠轴承 Ball Bearing |
170mm (6-11/16") |
活动 107mm Swivel 107mm AK剎 158mm Swivel W/AK Lock Brake 158mm |
| 450kgs (990 lbs) |
铝芯AQPU轮(平面) QPU on AL Core (Flat) |
1102-05-87-1 | 1102-05-87-2 | 1102-05-87-4 | ||||
| 125mm x 51mm (5" x 2") |
450kgs (990 lbs) |
ZQPU轮(双轮) ZQPU (Dual Wheels) |
1102-05-101-1 | 1102-05-101-2 | 1102-05-101-4 | |||
| 138mm x 36.5mm (5-7/16"x1-7/16") |
700kgs (1540 lbs) |
铣轮 Cast Iron |
1102-06-14-1 | 1102-06-14-2 | ─ | 滚珠轴承 Ball Bearing |
191mm (7-17/32") |
活动 111mm Swivel 111mm |
| 150mm x 40mm (6"x1-9/16") |
350kgs (770 lbs) |
铁芯NBR橡胶轮 NBR Rubber on Cast |
1102-06-04-1 | 1102-06-04-2 | 1102-06-04-4 | 滚珠轴承 Ball Bearing |
197mm (7-3/4") |
活动 119mm Swivel 119mm AK剎 160mm Swivel W/AK Lock Brake160mm |
| 400kgs (880 lbs) |
尼龙轮 Nylon |
1102-06-07-1 | 1102-06-07-2 | 1102-06-07-4 | ||||
| 350kgs (770 lbs) |
CPD轮 CPD |
1102-06-49-1 | 1102-06-49-2 | 1102-06-49-4 | ||||
| 300kgs (660 lbs) |
环保NBR橡胶轮 Non-marking Rubber on Cast |
1102-06-11-1 | 1102-06-11-2 | 1102-06-11-4 | ||||
| 300kgs (660 lbs) |
环保牵引NBR轮 Non-marking NBR Rubber on Cast |
1102-06-90-1 | 1102-06-90-2 | 1102-06-90-4 | ||||
| 350kgs (770 lbs) |
铝芯QQ橡胶轮 Recilent rubber on AL Core |
1102-06-89-1 | 1102-06-89-2 | 1102-06-89-4 | ||||
| 400kgs (880 lbs) |
WMRC轮 WMRC |
1102-06-45-1 | 1102-06-45-2 | 1102-06-45-4 | ||||
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 迴旋半径 | ||
| 固定 | 活动 | 剎车 | ||||||
| 150mm x 42mm (6"x1-5/8") |
410kgs (900 lbs) |
铁芯聚氨酯 PU on Cast |
1102-06-33-1 | 1102-06-33-2 | 1102-06-33-4 | 滚珠轴承 Ball Bearing |
197mm (7-3/4") |
活动 119mm Swivel 119mm AK剎 160mm Swivel W/AK Lock Brake 160mm |
| 400kgs (880 lbs) |
APU轮(圆弧) PU on AL Core (Round) |
1102-06-108-1 | 1102-06-108-2 | 1102-06-108-4 | ||||
| 450kgs (990 lbs) |
铝芯AQPU轮(圆弧) QPU on AL Core (Round) |
1102-06-87-1 | 1102-06-87-2 | 1102-06-87-4 | ||||
| 550kgs (1200 lbs) |
QPU轮(圆弧) QPU (Round) |
1102-06-80-1 | 1102-06-80-2 | 1102-06-80-4 | ||||
| 600kgs (1320 lbs) |
QPU轮(平面) QPU (Flat) |
1102-06-80-1 | 1102-06-80-2 | 1102-06-80-4 | ||||
| 500kgs (1100 lbs) |
VPU轮(圆弧) VPU (Round) |
1102-06-82-1 | 1102-06-82-2 | 1102-06-82-4 | ||||
| 670kgs (1475 lbs) |
VQPU轮(圆弧) VQPU (Round Shape) |
1102-06-83-1 | 1102-06-83-2 | 1102-06-83-4 | ||||
| 800kgs (1760 lbs) |
铁芯VXPU轮(圆弧) XPU on Iron Core (Round) |
1102-06-91-1 | 1102-06-91-2 | 1102-06-91-4 | ||||
| 410kgs (900 lbs) |
EPU轮(圆弧) EPU (Round Shape) |
1102-06-78-1 | 1102-06-78-2 | 1102-06-78-4 | ||||
| 460kgs (1010 lbs) |
EPU轮(平面) EPU (Flat Shape) |
1102-06-78-1 | 1102-06-78-2 | 1102-06-78-4 | ||||
| 550kgs (1200 lbs) |
EQPU轮(圆弧) EQPU (Round Shape) |
1102-06-81-1 | 1102-06-81-2 | 1102-06-81-4 | ||||
| 600kgs (1320 lbs) |
EQPU轮(平面) EQPU (Flat Shape) |
1102-06-81-1 | 1102-06-81-2 | 1102-06-81-4 | ||||
| 150mm x 45.5mm (6"x1-13/16") |
260kgs (570 lbs) |
三星轮 Rubber on Cast |
1102-06-03-1 | 1102-06-03-2 | 1102-06-03-4 | |||
| 150mm x 50mm (6" x 2") |
450kgs (990 lbs) |
APU轮(平面) PU on AL Core (Flat) |
1102-06(50)-108-1 | 1102-06(50)-108-2 | 1102-06(50)-108-4 | |||
| 500kgs (1100 lbs) |
铝芯AQPU轮(平面) QPU on AL Core (Flat) |
1102-06(50)-87-1 | 1102-06(50)-87-2 | 1102-06(50)-87-4 | ||||
| 150mm x 51mm | 550kgs (1210 lbs) |
ZQPU轮(双轮) ZQPU (Dual Wheels) |
1102-06-101-1 | 1102-06-101-2 | 1102-06-101-4 | 滚珠轴承 Ball Bearing |
238mm (9-3/8") |
活动 154mm Swivel 154mm AK剎 179mm Swivel W/AK Lock Brake 179mm |
| 180mm x 44mm (7" x 1-3/4") |
450kgs (990 lbs) |
APU轮(圆弧) PU on AL Core (Round) |
1102-07-108-1 | 1102-07-108-2 | 1102-07-108-4 | |||
| 600kgs (1320 lbs) |
铝芯AQPU轮(圆弧) QPU on AL Core (Round) |
1102-07-87-1 | 1102-07-87-2 | 1102-07-87-4 | ||||
| 180mm x 50mm (7" x 2") |
450kgs (990 lbs) |
铁芯聚氨酯 PU on Cast |
1102-07-33-1 | 1102-07-33-2 | 1102-07-33-4 | |||
| 600kgs (1320 lbs) |
QPU轮(圆弧) QPU (Round) |
1102-07-80-1 | 1102-07-80-2 | 1102-07-80-4 | ||||
| 650kgs (1430 lbs) |
VPU轮(圆弧) VPU (Round) |
1102-07-82-1 | 1102-07-82-2 | 1102-07-82-4 | ||||
| 650kgs (1430 lbs) |
铁芯VXPU轮(圆弧) XPU on Iron Core (Round) |
1102-07-91-1 | 1102-07-91-2 | 1102-07-91-4 | ||||
| 650kgs (1430 lbs) |
VQPU轮(圆弧) VQPU (Round Shape) |
1102-07-83-1 | 1102-07-83-2 | 1102-07-83-4 | ||||
| 193mm x 46mm (7-3/5"x1-13/16") |
300kgs (660 lbs) |
三星轮 Rubber on Cast |
1102-08-03-1 | 1102-08-03-2 | ─ | 滚珠轴承 Ball Bearing |
244.5mm (9-5/8") |
活动 159mm Swivel 159mm |
| 200mm x 44mm (8"x1-3/4") |
350kgs (770 lbs) |
铁芯NBR橡胶轮 NBR Rubber on Cast |
1102-08-04-1 | 1102-08-04-2 | 1102-08-04-4 | 滚珠轴承 Ball Bearing |
248mm (9-3/4") |
活动 164mm Swivel 164mm AK剎 184mm Swivel W/AK Lock Brake 184mm |
| 350kgs (770 lbs) |
环保NBR橡胶轮 Non-marking Rubber on Cast |
1102-08-11-1 | 1102-08-11-2 | 1102-08-11-4 | ||||
| 350kgs (770 lbs) |
环保牵引NBR轮 Non-marking NBR Rubber on Cast |
1102-08-90-1 | 1102-08-90-2 | 1102-08-90-4 | ||||
| 400kgs (880 lbs) |
铝芯QQ橡胶轮 Recilent rubber on AL Core |
1102-08-89-1 | 1102-08-89-2 | 1102-08-89-4 | ||||
| 200mm x 45.5mm (8"x1-13/16") |
550kgs (1200 lbs) |
铣轮 Cast Iron |
1102-08-14-1 | 1102-08-14-2 | 1102-08-14-4 | |||
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 迴旋半径 | ||
| 固定 | 活动 | 剎车 | ||||||
| 200mm x 50mm (8" x 2") |
450kgs (990 lbs) |
铁芯聚氨酯 PU on Cast |
1102-08-33-1 | 1102-08-33-2 | 1102-08-33-4 | 滚珠轴承 Ball Bearing |
248mm (9-3/4") |
活动 164mm Swivel 164mm AK剎 184mm Swivel W/AK Lock Brake 184mm |
| 450kgs (990 lbs) |
尼龙轮 Nylon |
1102-08-07-1 | 1102-08-07-2 | 1102-08-07-4 | ||||
| 750kgs (1650 lbs) |
铁芯聚氨脂(2050A/2050B) PU on Cast (2050A/2050B) |
1102-08-62-1 | 1102-08-62-2 | 1102-08-62-4 | ||||
| 400kgs (880 lbs) |
CPD轮 CPD |
1102-08-49-1 | 1102-08-49-2 | 1102-08-49-4 | ||||
| 450kgs (990 lbs) |
WMRC轮 WMRC |
1102-08-45-1 | 1102-08-45-2 | 1102-08-45-4 | ||||
| 500kgs (1100 lbs) |
APU轮(圆弧) PU on AL Core (Round) |
1102-08-108-1 | 1102-08-108-2 | 1102-08-108-4 | ||||
| 550kgs (1200 lbs) |
APU轮(平面) PU on AL Core (Flat) |
1102-08-108-1 | 1102-08-108-2 | 1102-08-108-4 | ||||
| 650kgs (1430 lbs) |
铝芯AQPU轮(平面) QPU on AL Core (Flat) |
1102-08-87-1 | 1102-08-87-2 | 1102-08-87-4 | ||||
| 700kgs (1540 lbs) |
铝芯AQPU轮(圆弧) QPU on AL Core (Round) |
1102-08-87-1 | 1102-08-87-2 | 1102-08-87-4 | ||||
| 670kgs (1475 lbs) |
QPU轮(圆弧) QPU (Round) |
1102-08-80-1 | 1102-08-80-2 | 1102-08-80-4 | ||||
| 720kgs (1580 lbs) |
QPU轮(平面) QPU (Flat) |
1102-08-80-1 | 1102-08-80-2 | 1102-08-80-4 | ||||
| 670kgs (1475 lbs) |
VPU轮(圆弧) VPU (Round) |
1102-08-82-1 | 1102-08-82-2 | 1102-08-82-4 | ||||
| 800kgs (1760 lbs) |
VQPU轮(圆弧) VQPU (Round Shape) |
1102-08-83-1 | 1102-08-83-2 | 1102-08-83-4 | ||||
| 1100kgs (2420 lbs) |
铁芯VXPU轮(圆弧) XPU on Iron Core (Round) |
1102-08-91-1 | 1102-08-91-2 | 1102-08-91-4 | ||||
| 650kgs (1430 lbs) |
EPU轮(圆弧) EPU (Round) |
1102-08-78-1 | 1102-08-78-2 | 1102-08-78-4 | ||||
| 700kgs (1540 lbs) |
EPU轮(平面) EPU (Flat Shape) |
1102-08-78-1 | 1102-08-78-2 | 1102-08-78-4 | ||||
| 750kgs (1650 lbs) |
EQPU轮(圆弧) EQPU (Round) |
1102-08-81-1 | 1102-08-81-2 | 1102-08-81-4 | ||||
| 800kgs (1760 lbs) |
EQPU轮(平面) EQPU (Flat) |
1102-08-81-1 | 1102-08-81-2 | 1102-08-81-4 | ||||
| 200mm x 51mm (8" x 2") |
650kgs (1430 lbs) |
ZQPU轮(双轮) ZQPU (Dual Wheels) |
1102-08-101-1 | 1102-08-101-2 | 1102-08-101-4 | |||
| 轮径 × 轮宽 | 载重 | 材质 | 型号 | 轴承 | 总高 | 迴旋半径 | ||
| 固定 | 活动 | 剎车 | ||||||
| 250mm x 50mm (10" x 2") |
400kgs (880 lbs) |
铁芯NBR橡胶轮 NBR Rubber on Cast |
1102-10-04-1 | 1102-10-04-2 | 1102-10-04-4 | 滚珠轴承 Ball Bearing |
305mm (12") |
活动 175.5mm Swivel 175.5mm AK剎 187mm Swivel W/AK Lock Brake 187mm |
| 400kgs (880 lbs) |
环保NBR橡胶轮 Non-marking Rubber on Cast |
1102-10-11-1 | 1102-10-11-2 | 1102-10-11-4 | ||||
| 600kgs (1320 lbs) |
铁芯聚氨酯 PU on Cast |
1102-10-33-1 | 1102-10-33-2 | 1102-10-33-4 | ||||
| 800kgs (1760 lbs) |
尼龙轮 Nylon |
1102-10-07-1 | 1102-10-07-2 | 1102-10-07-4 | ||||
| 250mm x 62mm (10"x2-7/16") |
400kgs (880 lbs) |
铁芯NBR橡胶轮 NBR Rubber on Cast |
1102-10(62)-04-1 | 1102-10(62)-04-2 | 1102-10(62)-04-4 | 滚珠轴承 Ball Bearing |
305mm (12") |
活动 175.5 mm Swivel 175.5mm AK剎 187 mm Swivel W/AK Lock Brake 187mm |
| 400kgs (880 lbs) |
环保NBR橡胶轮 Non-marking Rubber on Cast |
1102-10(62)-11-1 | 1102-10(62)-11-2 | 1102-10(62)-11-4 | ||||
| 600kgs (1320 lbs) |
铁芯聚氨酯 PU on Cast |
1102-10-33-1 | 1102-10-33-2 | 1102-10-33-4 | ||||
| 400kgs (880 lbs) |
环保牵引NBR轮 Non-marking NBR Rubber on Cast |
1102-10-90-1 | 1102-10-90-2 | 1102-10-90-4 | ||||
| 900kgs (1980 lbs) |
QPU轮(圆弧) QPU (Round) |
1102-10-80-1 | 1102-10-80-2 | 1102-10-80-4 | ||||
| 900kgs (1980 lbs) |
QPU轮(平面) QPU (Flat) |
1102-10-80-1 | 1102-10-80-2 | 1102-10-80-4 | ||||
| 1000kgs (2200 lbs) |
VPU轮(圆弧) VPU (Round) |
1102-10-82-1 | 1102-10-82-2 | 1102-10-82-4 | ||||
| 1200kgs (2640 lbs) |
VQPU轮(圆弧) VQPU (Round Shape) |
1102-10-83-1 | 1102-10-83-2 | 1102-10-83-4 | ||||
| 1500kgs (3300 lbs) |
铁芯VXPU轮 XPU on Iron Core |
1102-10-91-1 | 1102-10-91-2 | 1102-10-91-4 | ||||
| 300mm x 76mm (12" x 3") |
650kgs (1430 lbs) |
铁芯NBR橡胶轮 NBR Rubber on Cast |
1102-12-04-1 | 1102-12-04-2 | ─ | 滚珠轴承 Ball Bearing |
352mm (13-27/32") |
活动 222mm Swivel 222mm |
| 550kgs (1200 lbs) |
环保牵引NBR轮 Non-marking NBR Rubber on Cast |
1102-12-90-1 | 1102-12-90-2 | ─ | ||||
| 300mm x 90mm (12"x3-17/32") |
1250kgs (2750 lbs) |
VPU轮(圆弧) VPU (Round) |
1102-12-82-1 | 1102-12-82-2 | ─ | 滚珠轴承 Ball Bearing |
352mm (13-27/32") |
活动 222mm Swivel 222mm |
| 1500kgs (3300 lbs) |
VPU轮(平面) VPU (Flat) |
1102-12-82-1 | 1102-12-82-2 | ─ | ||||
| 1500kgs (3300 lbs) |
VQPU轮(圆弧) VQPU (Round Shape) |
1102-12-83-1 | 1102-12-83-2 | ─ | ||||
| 1800kgs (3960 lbs) |
VQPU轮(平面) VQPU (Flat) |
1102-12-83-1 | 1102-12-83-2 | ─ | ||||
| 2000kgs (4400 lbs) |
铁芯VXPU轮(圆弧) XPU on Iron Core (Round) |
1102-12-91-1 | 1102-12-91-2 | ─ | ||||
| 2500kgs (5500 lbs) |
铁芯VXPU轮(平面) VXPU on Iron Core(Flat) |
1102-12-91-1 | 1102-12-91-2 | ─ | ||||
| 305mm x 70mm (12"x2-3/4") |
1000kgs (2200 lbs) |
铁芯聚氨酯 PU on Cast |
1102-12-33-1 | 1102-12-33-2 | ─ | 滚珠轴承 Ball Bearing |
354.5mm (13-31/32") |
活动 224mm Swivel 224mm |
| 1250kgs (2750 lbs) |
QPU轮(平面) QPU (Flat) |
1102-12-80-1 | 1102-12-80-2 | ─ | ||||
